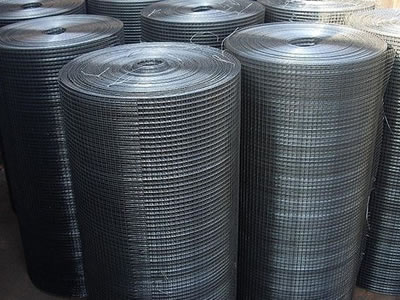

Black Welded Wire Mesh

Black welded wire mesh is made of high quality black wire and black anneal wire. It has flat surface, uniform mesh size, firm welding spot.

Product features
The material is without any surface treatment. The cost of black welded wire mesh is lower than galvanized welded wire mesh. And we paint oil on the mesh. So it is not easy to rusty.

Product application
Black welded wire mesh is widely used industries, buildings, transportations, mine etc; Black anneal wire welded mesh is welding by vacuum annealing wire. The material is soft. This kind mesh is easy to press forming, And taking surface treatment like, electrical galvanizing, hot deep galvanizing, PVC powder painting，Chrome plating and so on. It was used as machine guarding, poultry cage, food basket, waste basket and others.

Specification List of Black Welded Wire Mesh
Opening		Wire Diameter<BWG>
In inch	In metric unit(mm)
1/4" x 1/4"	6.4mm x 6.4mm	21,22,23,24,25,26,27
2.5/8" x 2.5/8"	7.94mmx7.94mm	20,21,22,23,24,25,26
3/8” x 3/8”	10.6mm x 10.6mm	19,20,21,22,23,24,25
1/2” x 1/2”	12.7mm x 12.7mm	16,17,18,19,20,21,22,23,24,25,26,27
5/8” x 5/8”	15.875mm x 15.875mm	16,17,18,19,20,21,22,23,24,25
3/4” x 3/4”	19.1mm x 19.1mm	14,15,16,17,18,19,20,21,22,23,24,25
6/7” x 6/7”	21.8x21.8mm	14,15,16,17,18,19,20,21,22,23,24,25
1" x 1/2"	25.4mm x 12.7mm	14,15,16,17,18,19,20,21,22,23,24
1" x 1"	25.4mmX25.4mm	14,15,16,17,18,19,20,21,22,23
1-1/4" x 1-1/4"	31.75mmx31.75mm	14,15,16,17,18,19,20,21,22,23
1-1/2" x 1-1/2"	38mm x 38mm	13,14,15,16,17,18,19,20,21
2" x 1"	50.8mm x 25..4mm	13,14,15,16,17,18,19,20,21
2" x 2"	50.8mm x 50.8mm	12,13,14,15,16,17,18,19,20
Technical Note: 1,Standard roll length: 30m;width: 0.5m to 2.1m 2,Special sizes available at request 3,Packing: in waterproof paper in rolls. Custom packing available at request.
