Expanded Metal Mesh

Expanded metal mesh can be made from a range of materials, such as carbon steel, aluminum metal, stainless steel metal, nickel metal and so on. Expanded metal mesh are widely used as steel reinforcement materials in petroleum, chemical industry and building.

Expanded MetalExpanded Metal

Expanded MetalExpanded Metal

Expanded MetalExpanded Metal


Surface treatment hot-dipped, electrol galvanized, pvc-coated.

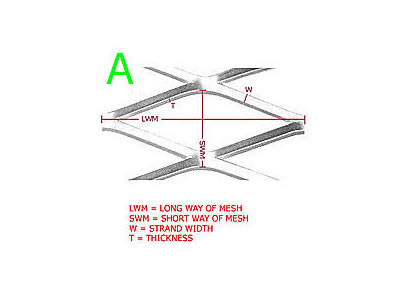

Expanded Metal AExpanded Metal B

Type A Sizes:
Long way of mesh: 12.5-200mm
Short way of mesh: 5-80mm
Thickness: 0.5-8mm
Stand Width: 0.5mm-10mm
Expanded metal mesh at length from 1M-30M and width from 600-2400mm.

Packing: Pallet suilt for sea transport.

Type B Sizes:
Long way of mesh: mini 3mm
Short way of mesh: mini 2mm
Thickness: 0.03-1.5mm
Stand Width: 0.03mm-3mm
Expanded metal mesh at length from 1M-30M and width from max 1250mm
Packing:
inner PE bag, outer carton.

L.W.M. S.W.M. Strand Width Strand Gauge Approx. Kg/M2
6.05 3.38 0.8 0.5 2.1
10.24 5.84 0.8 0.5 1.2
10.24 5.84 1.2 0.9 3.2
14.27 5.84 1.2 0.9 3.2
19.05 7.42 1.2 0.9 3.4
5.8 3.5 0.8 0.6 2.1
19 7.4 1.7 1 3.4
30.5 11.7 2.4 1.6 4.9
30.5 11.7 2.4 1.2 3.8
38 16.5 2.2 1.6 3.4
50.8 22.5 2.5 2.5 4.4
50.8 22.5 3 1.6 3.4
50.8 22.5 3.9 3 8.1
50.8 22.5 3.1 3 6.5
76.2 33.9 3.5 3 4.9
85.7 40.6 3.2 3 3.7
101.6 50.8 5 3 4.7
101.6 50.8 3.4 3 3.1
114.3 39.3 4.6 3 5.4
200 75 6.3 3 3.6
